UAV Detection and Control System
Model:HW-UAVRF-3
Ⅰ. Product Introduction

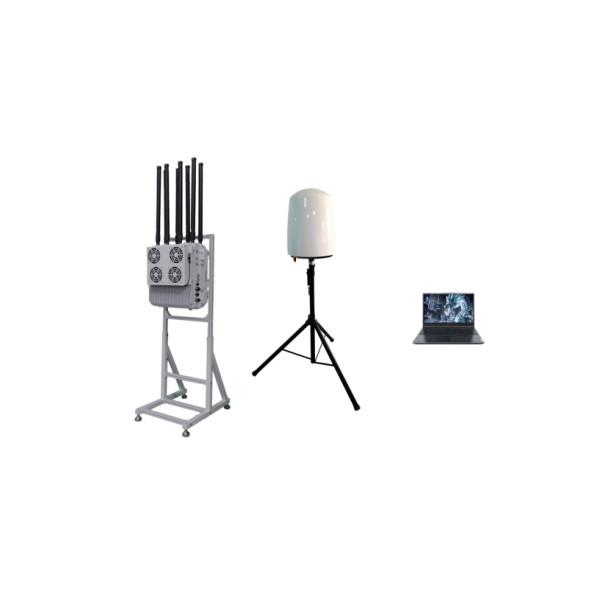

The system consists of striking equipment, detecting equipment and background operating system. The detection system can detect the electromagnetic signal emitted by the UAV and simultaneously detect multiple targets within 3km. With unattended automatic defense function, the defense range for all-weather protection. It can be used in all kinds of emergency scene, security scene, important activity scene, airspace of confidential units and various places to prevent UAV from falling and wounding. By setting up in an appropriate position, a UAV protection area can be formed in the designated area, and the UAV cannot enter the area. It can set up 24 hours unattended no-fly zone.
Ⅱ. Performance Characteristics
- 24-hour automatic real-time monitoring and defense
- Blacklist and whitelist
- No interference, no impact on the surrounding environment such as WIFI, Bluetooth, aircraft
- Synchronous all-round defense of multiple drones
- Early warning
- Dynamic networking Supports multiple networking through the cloud server, which is flexible and covers the whole area
- Defense mode: automatic defense, linkage with detection function, one key to open automatic defense, realize unattended
- System configuration: support flexible system configuration, adapt to a variety of environment and site requirements
Ⅲ. Technical Specifications
| Strike equipment parameters |
| Number of frequency bands | 8 |
| Frequency coverage | BAND1:410-470MHz；BAND2:840-930MHz；BAND3:1200-1300MHz；BAND4:1420-1460MHz；BAND5: 1555-1650MHz；BAND6: 2400-2500MHz；BAND7: 5150-5350MHz；BAND8: 5725-5850MHz |
| Transmission power | BAND1-5:25W；BAND6:100W；BAND7: 25W；BAND8: 100W |
| Beam width | 360° in all directions |
| Radius | ≧1500 meters |
| Supply voltage | AC100-240V |
| Working hours | continuous operation of AC power supply |
| Detection equipment parameters |
| Supply voltage | AC100~240V |
| Dimension Diameter | 345mm* Height 435mm |
| Weight | 8.7 kg |
| Detection power consumption | 50W |
| Normal operating temperature | -25℃~55℃ |
| Protection level | IP66 |
| Network support | Tri-netcom |
| Support identification protocol | LightBridge1; LightBridge2; Ocusync; Ocusync2.0; WIFI and WIFI variant protocol; Zigbee; Bluetooth |
| Background operating system parameters |
| Name | Lenove |
| Model | Legion R7000 2020 |
| Processor | AMD R5-4600H |
| Graphics card | RTX 1650 |
| Memory capacity | 16GB |
| Operating system | Windows10 64 |
